Visualizes model rankings across multiple performance metrics.

Usage

plot_model_rankings(ranking)

Arguments

ranking

Output from rank_models().

Value

A ggplot2 object.

Details

Rankings are typically based on metrics such as:

  • R-squared (R²)

  • Root Mean Squared Error (RMSE)

  • Residual Sum of Squares (RSS)

  • Akaike Information Criterion (AIC)

  • Bayesian Information Criterion (BIC)

This visualization helps identify models that consistently perform well across several evaluation criteria.

Examples


files <- example_data()

raw_data <- read_ankom(
  files$ankom
)

metadata <- read_metadata(
  files$metadata
)

gp <- process_ankom(
  raw_data,
  metadata,
  headspace_ml = 210,
  temperature_c = 39
)

gp_clean <- exclude_heads(
  gp,
  heads = c(
    "1",
    "2",
    "4",
    "20"
  ),
  reason = c(
    "Abnormal gas profile",
    "Abnormal gas profile",
    "Abnormal gas profile",
    "Abnormal gas profile"
  )
)

groot_fit <- fit_groot(
  gp_clean
)
#> Minor negative pressure values detected. Minimum PSI = -0.255 . These may reflect normal sensor variation.
#> rumenGP data validation passed.
#> Observations: 3038
#> Heads: 21
#> Treatments: 5

gompertz_fit <- fit_gompertz(
  gp_clean
)
#> Minor negative pressure values detected. Minimum PSI = -0.255 . These may reflect normal sensor variation.
#> rumenGP data validation passed.
#> Observations: 3038
#> Heads: 21
#> Treatments: 5

comparison <- compare_models(
  Groot = groot_fit,
  Gompertz = gompertz_fit
)

ranking <- rank_models(
  comparison
)

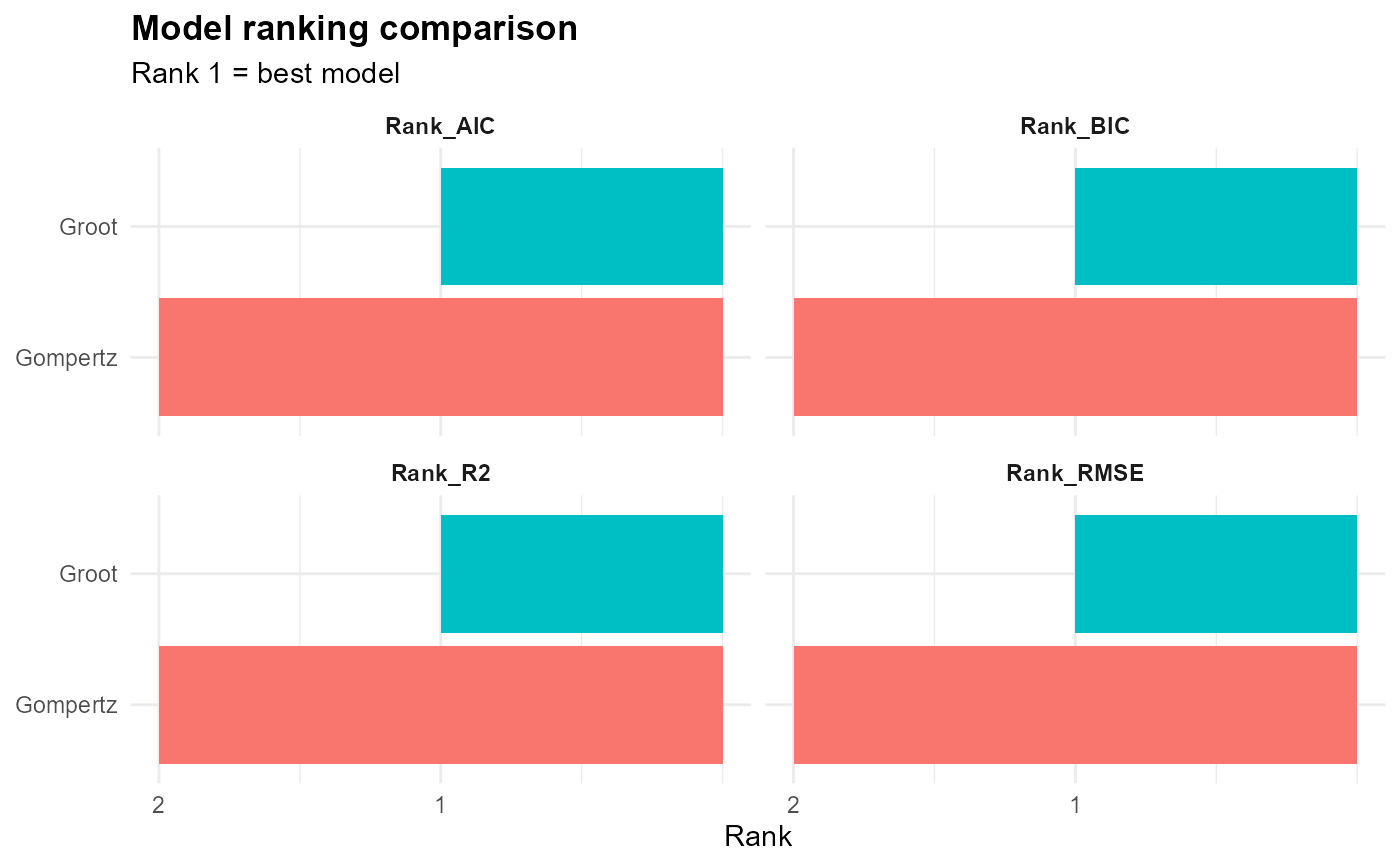

plot_model_rankings(
  ranking
)
